5. ELF文件
ELF文件格式是一个开放标准，各种UNIX系统的可执行文件都采用ELF格式，它有三种不同的类型：
- 可重定位的目标文件（Relocatable，或者Object File）
- 可执行文件（Executable）
- 共享库（Shared Object，或者Shared Library）
共享库留到第20章第4节再详细介绍，本节我们以第18章第3节的求一组数最大值的汇编程序为例讨论目标文件和可执行文件的格式。现在详细解释一下这个程序的汇编、链接、运行过程：
写一个汇编程序保存成文本文件
max.s。汇编器读取这个文本文件转换成目标文件
max.o，目标文件由若干个Section组成，我们在汇编程序中声明的.section会成为目标文件中的Section，此外汇编器还会自动添加一些Section（比如符号表）。然后链接器把目标文件中的Section合并成几个Segment，生成可执行文件
max。最后加载器（Loader）根据可执行文件中的Segment信息加载运行这个程序。

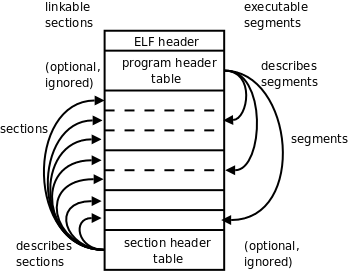

ELF格式提供了两种不同的视角，链接器把ELF文件看成是Section的集合，而加载器把ELF文件看成是Segment的集合。如下图所示。
左边是从链接器的视角来看ELF文件，开头的ELF Header描述了体系结构和操作系统等基本信息，并指出Section Header Table和Program Header Table在文件中的什么位置，Program Header Table在链接过程中用不到，所以是可有可无的，Section Header Table中保存了所有Section的描述信息，通过Section Header Table可以找到每个Section在文件中的位置。右边是从加载器的视角来看ELF文件，开头是ELF Header，Program Header Table中保存了所有Segment的描述信息，Section Header Table在加载过程中用不到，所以是可有可无的。从上图可以看出，一个Segment由一个或多个Section组成，这些Section加载到内存时具有相同的访问权限。有些Section只对链接器有意义，在运行时用不到，也不需要加载到内存，那么就不属于任何Segment。注意Section Header Table和Program Header Table并不是一定要位于文件的开头和结尾，其位置由ELF Header指出，上图这么画只是为了清晰。
目标文件需要链接器做进一步处理，所以一定有Section Header Table；可执行文件需要加载运行，所以一定有Program Header Table；而共享库既要加载运行，又要在加载时做动态链接，所以既有Section Header Table又有Program Header Table。
5.1. 目标文件
下面用readelf工具读出目标文件max.o的ELF Header和Section Header Table，然后我们逐段分析。
bash
$ readelf -a max.o
ELF Header:
Magic: 7f 45 4c 46 01 01 01 00 00 00 00 00 00 00 00 00
Class: ELF32
Data: 2's complement, little endian
Version: 1 (current)
OS/ABI: UNIX - System V
ABI Version: 0
Type: REL (Relocatable file)
Machine: Intel 80386
Version: 0x1
Entry point address: 0x0
Start of program headers: 0 (bytes into file)
Start of section headers: 200 (bytes into file)
Flags: 0x0
Size of this header: 52 (bytes)
Size of program headers: 0 (bytes)
Number of program headers: 0
Size of section headers: 40 (bytes)
Number of section headers: 8
Section header string table index: 5
...ELF Header中描述了操作系统是UNIX，体系结构是80386。Section Header Table中有8个Section Header，从文件地址200（0xc8）开始，每个Section Header占40字节，共320字节，到文件地址0x207结束。这个目标文件没有Program Header。文件地址是这样定义的：文件开头第一个字节的地址是0，然后每个字节占一个地址。
bash
...
Section Headers:
[Nr] Name Type Addr Off Size ES Flg Lk Inf Al
[ 0] NULL 00000000 000000 000000 00 0 0 0
[ 1] .text PROGBITS 00000000 000034 00002a 00 AX 0 0 4
[ 2] .rel.text REL 00000000 0002b0 000010 08 6 1 4
[ 3] .data PROGBITS 00000000 000060 000038 00 WA 0 0 4
[ 4] .bss NOBITS 00000000 000098 000000 00 WA 0 0 4
[ 5] .shstrtab STRTAB 00000000 000098 000030 00 0 0 1
[ 6] .symtab SYMTAB 00000000 000208 000080 10 7 7 4
[ 7] .strtab STRTAB 00000000 000288 000028 00 0 0 1
Key to Flags:
W (write), A (alloc), X (execute), M (merge), S (strings)
I (info), L (link order), G (group), x (unknown)
O (extra OS processing required) o (OS specific), p (processor specific)
There are no section groups in this file.
There are no program headers in this file.
...从Section Header中读出各Section的描述信息，其中.text和.data是我们在汇编程序中声明的Section，而其它Section是汇编器自动添加的。Addr是这些段加载到内存中的地址（我们讲过程序中的地址都是虚拟地址），加载地址要在链接时填写，现在空缺，所以是全0。Off和Size两列指出了各Section的文件地址，比如.data段从文件地址0x60开始，一共0x38个字节，回去翻一下程序，.data段定义了14个4字节的整数，一共是56个字节，也就是0x38。根据以上信息可以描绘出整个目标文件的布局。
| 起始文件地址 | Section或Header |
|---|---|
| 0 | ELF Header |
| 0x34 | .text |
| 0x60 | .data |
| 0x98 | .bss（此段为空） |
| 0x98 | .shstrtab |
| 0xc8 | Section Header Table |
| 0x208 | .symtab |
| 0x288 | .strtab |
| 0x2b0 | .rel.text |
这个文件不大，我们直接用hexdump工具把目标文件的字节全部打印出来看。
bash
$ hexdump -C max.o
00000000 7f 45 4c 46 01 01 01 00 00 00 00 00 00 00 00 00 |.ELF............|
00000010 01 00 03 00 01 00 00 00 00 00 00 00 00 00 00 00 |................|
00000020 c8 00 00 00 00 00 00 00 34 00 00 00 00 00 28 00 |........4.....(.|
00000030 08 00 05 00 bf 00 00 00 00 8b 04 bd 00 00 00 00 |................|
00000040 89 c3 83 f8 00 74 10 47 8b 04 bd 00 00 00 00 39 |.....t.G.......9|
00000050 d8 7e ef 89 c3 eb eb b8 01 00 00 00 cd 80 00 00 |.~..............|
00000060 03 00 00 00 43 00 00 00 22 00 00 00 de 00 00 00 |....C...".......|
00000070 2d 00 00 00 4b 00 00 00 36 00 00 00 22 00 00 00 |-...K...6..."...|
00000080 2c 00 00 00 21 00 00 00 16 00 00 00 0b 00 00 00 |,...!...........|
00000090 42 00 00 00 00 00 00 00 00 2e 73 79 6d 74 61 62 |B.........symtab|
000000a0 00 2e 73 74 72 74 61 62 00 2e 73 68 73 74 72 74 |..strtab..shstrt|
000000b0 61 62 00 2e 72 65 6c 2e 74 65 78 74 00 2e 64 61 |ab..rel.text..da|
000000c0 74 61 00 2e 62 73 73 00 00 00 00 00 00 00 00 00 |ta..bss.........|
000000d0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
*
000000f0 1f 00 00 00 01 00 00 00 06 00 00 00 00 00 00 00 |................|
00000100 34 00 00 00 2a 00 00 00 00 00 00 00 00 00 00 00 |4...*...........|
00000110 04 00 00 00 00 00 00 00 1b 00 00 00 09 00 00 00 |................|
00000120 00 00 00 00 00 00 00 00 b0 02 00 00 10 00 00 00 |................|
00000130 06 00 00 00 01 00 00 00 04 00 00 00 08 00 00 00 |................|
00000140 25 00 00 00 01 00 00 00 03 00 00 00 00 00 00 00 |%...............|
00000150 60 00 00 00 38 00 00 00 00 00 00 00 00 00 00 00 |`...8...........|
00000160 04 00 00 00 00 00 00 00 2b 00 00 00 08 00 00 00 |........+.......|
00000170 03 00 00 00 00 00 00 00 98 00 00 00 00 00 00 00 |................|
00000180 00 00 00 00 00 00 00 00 04 00 00 00 00 00 00 00 |................|
00000190 11 00 00 00 03 00 00 00 00 00 00 00 00 00 00 00 |................|
000001a0 98 00 00 00 30 00 00 00 00 00 00 00 00 00 00 00 |....0...........|
000001b0 01 00 00 00 00 00 00 00 01 00 00 00 02 00 00 00 |................|
000001c0 00 00 00 00 00 00 00 00 08 02 00 00 80 00 00 00 |................|
000001d0 07 00 00 00 07 00 00 00 04 00 00 00 10 00 00 00 |................|
000001e0 09 00 00 00 03 00 00 00 00 00 00 00 00 00 00 00 |................|
000001f0 88 02 00 00 28 00 00 00 00 00 00 00 00 00 00 00 |....(...........|
00000200 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000210 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000220 00 00 00 00 03 00 01 00 00 00 00 00 00 00 00 00 |................|
00000230 00 00 00 00 03 00 03 00 00 00 00 00 00 00 00 00 |................|
00000240 00 00 00 00 03 00 04 00 01 00 00 00 00 00 00 00 |................|
00000250 00 00 00 00 00 00 03 00 0c 00 00 00 0e 00 00 00 |................|
00000260 00 00 00 00 00 00 01 00 17 00 00 00 23 00 00 00 |............#...|
00000270 00 00 00 00 00 00 01 00 21 00 00 00 00 00 00 00 |........!.......|
00000280 00 00 00 00 10 00 01 00 00 64 61 74 61 5f 69 74 |.........data_it|
00000290 65 6d 73 00 73 74 61 72 74 5f 6c 6f 6f 70 00 6c |ems.start_loop.l|
000002a0 6f 6f 70 5f 65 78 69 74 00 5f 73 74 61 72 74 00 |oop_exit._start.|
000002b0 08 00 00 00 01 02 00 00 17 00 00 00 01 02 00 00 |................|
000002c0左边一列是文件地址，中间是每个字节的十六进制表示，右边是把这些字节解释成ASCII码所对应的字符。中间有一个*号表示省略的部分全是0。.data段对应的是这一块：
bash
...
00000060 03 00 00 00 43 00 00 00 22 00 00 00 de 00 00 00 |....C...".......|
00000070 2d 00 00 00 4b 00 00 00 36 00 00 00 22 00 00 00 |-...K...6..."...|
00000080 2c 00 00 00 21 00 00 00 16 00 00 00 0b 00 00 00 |,...!...........|
00000090 42 00 00 00 00 00 00 00
....data段将被原封不动地加载到内存中，下一小节会看到.data段被加载到内存地址0x080490a0~0x080490d7。
.shstrtab和.strtab这两个Section中存放的都是ASCII码：
bash
...
00 2e 73 79 6d 74 61 62 |B.........symtab|
000000a0 00 2e 73 74 72 74 61 62 00 2e 73 68 73 74 72 74 |..strtab..shstrt|
000000b0 61 62 00 2e 72 65 6c 2e 74 65 78 74 00 2e 64 61 |ab..rel.text..da|
000000c0 74 61 00 2e 62 73 73 00 |ta..bss.........|
...
00 64 61 74 61 5f 69 74 |.........data_it|
00000290 65 6d 73 00 73 74 61 72 74 5f 6c 6f 6f 70 00 6c |ems.start_loop.l|
000002a0 6f 6f 70 5f 65 78 69 74 00 5f 73 74 61 72 74 00 |oop_exit._start.|
...可见.shstrtab段保存着各Section的名字，.strtab段保存着程序中用到的符号的名字。每个名字都是以'\0'结尾的字符串。
我们知道，C语言的全局变量如果在代码中没有初始化，就会在程序加载时用0初始化。这种数据属于.bss段，在加载时它和.data段一样都是可读可写的数据，但是在ELF文件中.data段需要占用一部分空间保存初始值，而.bss段则不需要。也就是说，.bss段在文件中只占一个Section Header而没有对应的Section，程序加载时.bss段占多大内存空间在Section Header中描述。在我们这个例子中没有用到.bss段，在第19章第3节会看到这样的例子。
我们继续分析readelf输出的最后一部分，是从.rel.text和.symtab这两个Section中读出的信息。
bash
...
Relocation section '.rel.text' at offset 0x2b0 contains 2 entries:
Offset Info Type Sym.Value Sym. Name
00000008 00000201 R_386_32 00000000 .data
00000017 00000201 R_386_32 00000000 .data
There are no unwind sections in this file.
Symbol table '.symtab' contains 8 entries:
Num: Value Size Type Bind Vis Ndx Name
0: 00000000 0 NOTYPE LOCAL DEFAULT UND
1: 00000000 0 SECTION LOCAL DEFAULT 1
2: 00000000 0 SECTION LOCAL DEFAULT 3
3: 00000000 0 SECTION LOCAL DEFAULT 4
4: 00000000 0 NOTYPE LOCAL DEFAULT 3 data_items
5: 0000000e 0 NOTYPE LOCAL DEFAULT 1 start_loop
6: 00000023 0 NOTYPE LOCAL DEFAULT 1 loop_exit
7: 00000000 0 NOTYPE GLOBAL DEFAULT 1 _start
No version information found in this file..rel.text告诉链接器指令中的哪些地方需要做重定位，在下一小节详细讨论。
.symtab是符号表。Ndx列是每个符号所在的Section编号，例如符号data_items在第3个Section里（也就是.data段），各Section的编号见Section Header Table。Value列是每个符号所代表的地址，在目标文件中，符号地址都是相对于该符号所在Section的相对地址，比如data_items位于.data段的开头，所以地址是0，_start位于.text段的开头，所以地址也是0，但是start_loop和loop_exit相对于.text段的地址就不是0了。从Bind这一列可以看出_start这个符号是GLOBAL的，而其它符号是LOCAL的，GLOBAL符号是在汇编程序中用.globl指示声明过的符号。
现在剩下.text段没有分析，objdump工具可以把程序中的机器指令反汇编（Disassemble），那么反汇编的结果是否跟原来写的汇编代码一模一样呢？我们对比分析一下。
bash
$ objdump -d max.o
max.o: file format elf32-i386
Disassembly of section .text:
00000000 <_start>:
0: bf 00 00 00 00 mov $0x0,%edi
5: 8b 04 bd 00 00 00 00 mov 0x0(,%edi,4),%eax
c: 89 c3 mov %eax,%ebx
0000000e <start_loop>:
e: 83 f8 00 cmp $0x0,%eax
11: 74 10 je 23 <loop_exit>
13: 47 inc %edi
14: 8b 04 bd 00 00 00 00 mov 0x0(,%edi,4),%eax
1b: 39 d8 cmp %ebx,%eax
1d: 7e ef jle e <start_loop>
1f: 89 c3 mov %eax,%ebx
21: eb eb jmp e <start_loop>
00000023 <loop_exit>:
23: b8 01 00 00 00 mov $0x1,%eax
28: cd 80 int $0x80左边是机器指令的字节，右边是反汇编结果。显然，所有的符号都被替换成地址了，比如je 23，注意没有加$的数表示内存地址，而不表示立即数。这条指令后面的<loop_exit>并不是指令的一部分，而是反汇编器从.symtab和.strtab中查到的符号名称，写在后面是为了有更好的可读性。目前所有指令中用到的符号地址都是相对地址，下一步链接器要修改这些指令，把其中的地址都改成加载时的内存地址，这些指令才能正确执行。
5.2. 可执行文件
现在我们按上一节的步骤分析可执行文件max，看看链接器都做了什么改动。
bash
$ readelf -a max
ELF Header:
Magic: 7f 45 4c 46 01 01 01 00 00 00 00 00 00 00 00 00
Class: ELF32
Data: 2's complement, little endian
Version: 1 (current)
OS/ABI: UNIX - System V
ABI Version: 0
Type: EXEC (Executable file)
Machine: Intel 80386
Version: 0x1
Entry point address: 0x8048074
Start of program headers: 52 (bytes into file)
Start of section headers: 256 (bytes into file)
Flags: 0x0
Size of this header: 52 (bytes)
Size of program headers: 32 (bytes)
Number of program headers: 2
Size of section headers: 40 (bytes)
Number of section headers: 6
Section header string table index: 3
Section Headers:
[Nr] Name Type Addr Off Size ES Flg Lk Inf Al
[ 0] NULL 00000000 000000 000000 00 0 0 0
[ 1] .text PROGBITS 08048074 000074 00002a 00 AX 0 0 4
[ 2] .data PROGBITS 080490a0 0000a0 000038 00 WA 0 0 4
[ 3] .shstrtab STRTAB 00000000 0000d8 000027 00 0 0 1
[ 4] .symtab SYMTAB 00000000 0001f0 0000a0 10 5 6 4
[ 5] .strtab STRTAB 00000000 000290 000040 00 0 0 1
Key to Flags:
W (write), A (alloc), X (execute), M (merge), S (strings)
I (info), L (link order), G (group), x (unknown)
O (extra OS processing required) o (OS specific), p (processor specific)
There are no section groups in this file.
Program Headers:
Type Offset VirtAddr PhysAddr FileSiz MemSiz Flg Align
LOAD 0x000000 0x08048000 0x08048000 0x0009e 0x0009e R E 0x1000
LOAD 0x0000a0 0x080490a0 0x080490a0 0x00038 0x00038 RW 0x1000
Section to Segment mapping:
Segment Sections...
00 .text
01 .data
There is no dynamic section in this file.
There are no relocations in this file.
There are no unwind sections in this file.
Symbol table '.symtab' contains 10 entries:
Num: Value Size Type Bind Vis Ndx Name
0: 00000000 0 NOTYPE LOCAL DEFAULT UND
